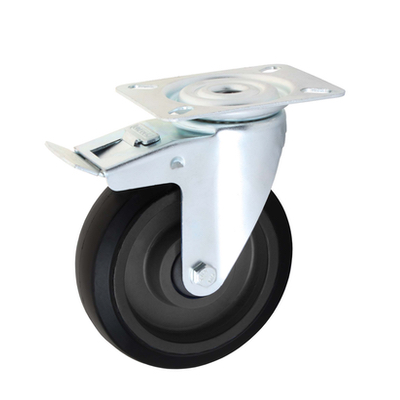

Rubber Wheel Zinc Caster Swivel Plate
L Series : Rubber Wheel Zinc Caster Swivel Plate / Fixed Plate / Threaded Stem
Usage Details
Suitable for factory use work carts or shelves are strong and durable. Suitable for use on smooth surfaces and no oil. Castors are available in sizes from 3.5 – 5 inches and can carry weight from 50 – 110 kilograms per wheel.

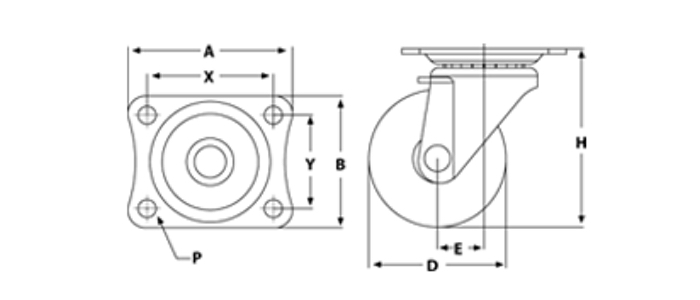

| Wheel Dia. (D) | 3.5 inch | 4 inch | 5 inch |
|---|---|---|---|
| Wheel Dia. (D) | 80 mm. | 100 mm. | 125 mm. |
| Height (H) | 108 mm. | 128 mm. | 156 mm. |
| Plate Size (AxB) | 105 x 80 mm. | 105 x 80 mm. | 105 x 80 mm. |
| Hole Phase (XxY) | 77 x 56 mm. | 77 x 56 mm. | 77 x 56 mm. |
| Hole Size (P) | 9.5 mm. | 9.5 mm. | 9.5 mm. |
| Spin Distance (E) | 31 mm. (no break) 35 mm. (with break) | 31 mm. (no break) 33 mm. (with break) | 34 mm. (no break) 35 mm. (with break) |
| Load Capacity / pcs. | 50 kilograms | 70 kilograms | 110 kilograms |
