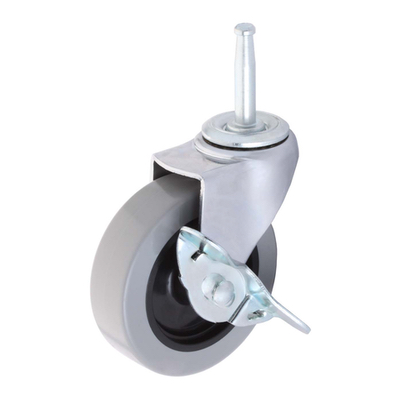

EVA Wheel Chrome Caster Grip-Neck Stem
M Series : EVA Wheel Chrome Caster Swivel Plate / Fixed Plate / Threaded Stem / Grip-Neck Stem
Usage Details
Suitable for general use, It can be used both inside and outside the building. But it should be a smooth, not rough area, because it will reduce the service life. There are wheel sizes from 2 – 3 inches, can support weight from 30 – 40 kilograms per wheel.

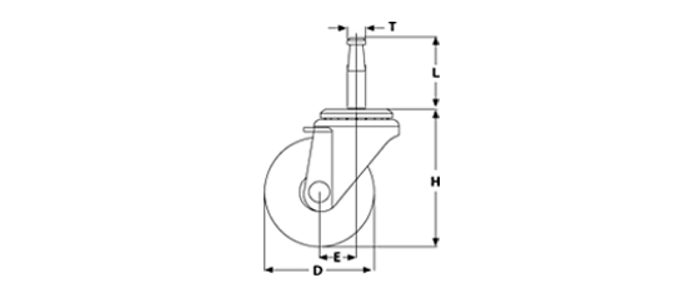

| Wheel Dia. (D) | 2 inch | 2.5 inch | 3 inch |
|---|---|---|---|
| Wheel Dia. (D) | 50 mm. | 65 mm. | 75 mm. |
| Height (H) | 63 mm. | 80 mm. | 92 mm. |
| Stem Height (L) | 38 m. | 38 mm. | 38 mm. |
| Stem Size (T) | 8 mm | 8 mm. | 8 mm. |
| Spin Distance (E) | 18 mm. | 20 mm. | 28 mm. |
| Load Capacity / pcs. | 30 kilograms | 35 kilograms | 40 kilograms |
Add-On

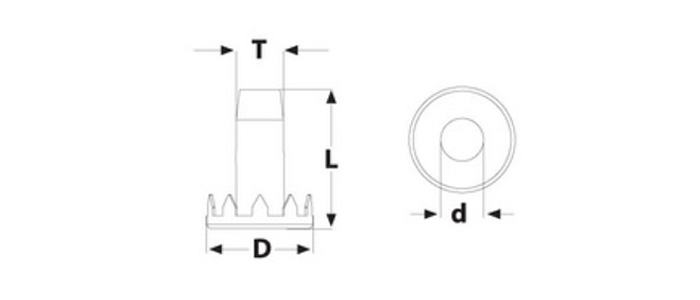

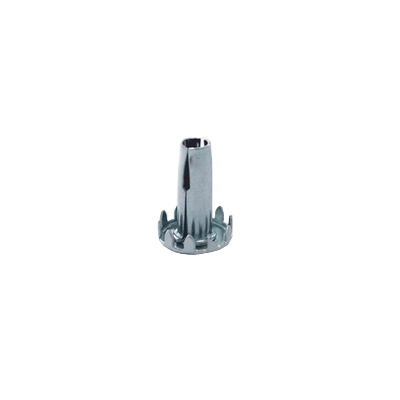

For grip-neck casters need to use accessories, which are steel socket, by putting the socket in the workpieces that will be needed. Then put the castor in the steel socket again.
| Diameter (D) | Socket Size (T) | Socket Height (D) | Stem Dia. (d) |
|---|---|---|---|
| 21 mm. | 9.5 mm. | 28 mm. | 8 mm. |
