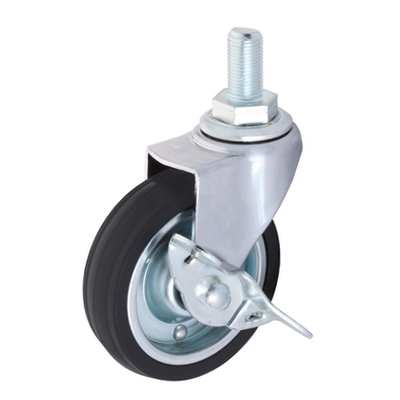

Rubber Press Wheel Chrome Caster Threaded Stem
M Series : Rubber Press Wheel Chrome Caster Swivel Plate / Fixed Plate / Threaded Stem / Grip-Neck Stem
Usage Details
Suitable for general use, it can be used both inside and outside the building. But it should be a smooth, not rough area, because it will reduce the service life. There are wheels sizes from 2.5 – 5 inches, can support weight from 30 – 60 kilograms per wheel.

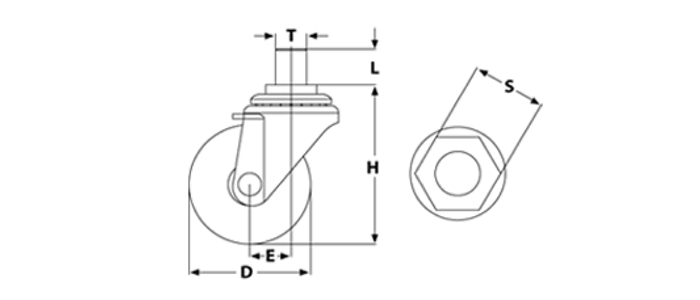

| Wheel Dia (D) | 2.5 inch | 3 inch | 4 inch | 5 inch |
|---|---|---|---|---|
| Wheel Dia (D) | 65 mm. | 75 mm. | 100 mm. | 125 mm. |
| Height (H) | 84 mm. | 99 mm. | 125 mm. | 155 mm. |
| Stem Height (L) | 15 mm. | 25 mm. | 25 mm. | 25 mm. |
| Stem Size (T) | 1/2 NF | 1/2 NF | 1/2 NF | 1/2 NF |
| Hexagon Size (S) | 21 mm. | 21 mm. | 21 mm. | 21 mm. |
| Spin Distance (E) | 20 mm. | 28 mm. | 26 mm. | 40 mm. |
| Load Capacity / pcs. | 30 kilograms | 40 kilograms | 50 kilograms | 60 kilograms |
