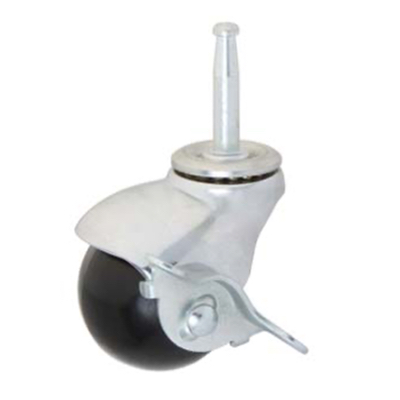

PVC Wheel Chrome Caster Grip-Neck Stem
S Series : PVC Wheel Chrome Caster Swivel Plate / Threaded Stem / Grip-Neck Stem
Usage Details
Suitable for applications that do not require heavy loads. Used inside the office building or within the residence. Should not be used in rough areas or uneven skin. Can carry weight from 15 – 20 kgs. per wheel.

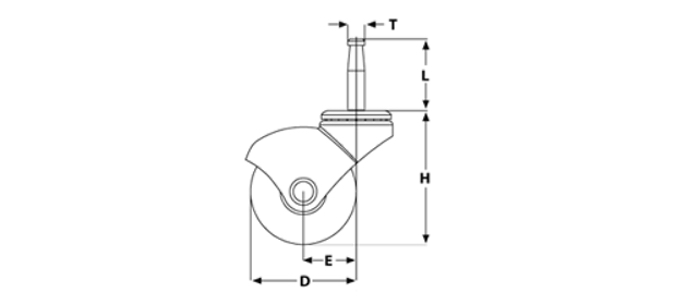

| Wheel Dia. (D) | 1.5 inch | 2 inch |
|---|---|---|
| Wheel Dia. (D) | 40 mm. | 50 mm. |
| Height (H) | 58 mm. | 67 mm. |
| Stem Height (L) | 15 mm. | 15 m. |
| Stem Size (T) | 1/2 NF | 1/2 NF |
| Spin Distance (E) | 21 mm. | 25 mm. |
| Load Capacity/pcs. | 20 kilograms | 25 kilograms |
Add-on
For grip-neck casters need to use accessories, which are steel socket, by putting the socket in the workpieces that will be needed. Then put the castor in the steel socket again
| Diameter (D) | Socket Size (T) | Socket Height (L) | Stem Dia. (d) |
|---|---|---|---|
| 21 mm. | 9.5 mm. | 28 mm. | 8 mm. |
