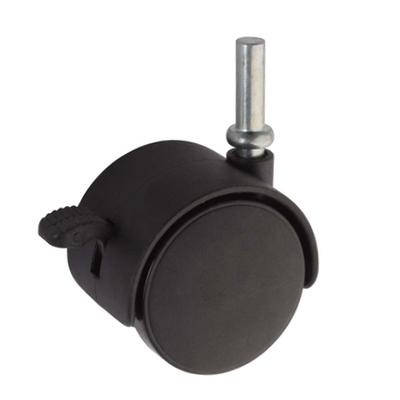

Double Nylon Wheel Plain Stem
S Series : Double Nylon Wheel Swivel Plate / Threaded Stem / Grip-Neck Stem / Ring Stem / Plain Stem / Furrow
Usage Details
Suitable for applications that do not require heavy loads. Used inside the office building or within the residence. Should not be used in rough areas or uneven skin. Can carry weight from 15-20 kgs. per pcs.

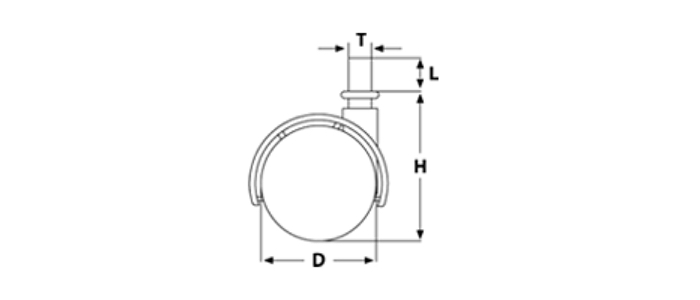

| Wheel Dia. (D) | 1.5 inch | 2 inch |
|---|---|---|
| Wheel Dia. (D) | 40 mm. | 50 mm. |
| Height (H) | 52 mm. | 60 mm. |
| Stem Height (L) | 37 mm. | 37 mm. |
| Stem Size (T) | 8 mm. | 8 mm. |
| Load Capacity / pcs. | 15 kilograms | 20 kilograms |
Add-on

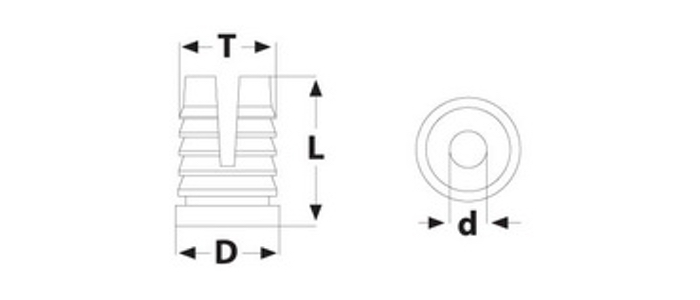

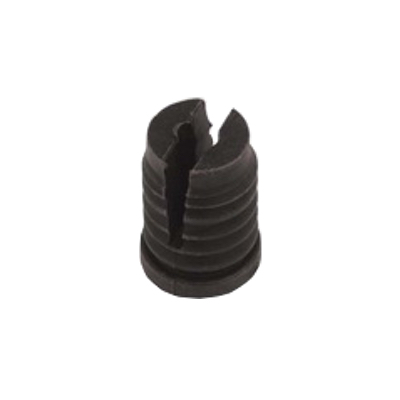

For plain stem casters need to use accessories, which are socket, by putting the socket in the workpieces that will be needed. Then put the castor in the socket again
| Diameter (D) | Socket Size (T) | Socket Height (L) | Stem Dia. (d) |
|---|---|---|---|
| 22.5 mm. | 20 mm. | 32.5 mm. | 8 mm. |
