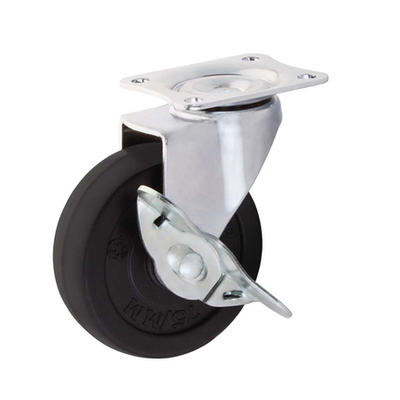

Rubber Wheel Chrome Caster Swivel Plate
M Series : Rubber Wheel Chrome Caster Swivel Plate / Fixed Plate / Threaded Stem / Grip-Neck Stem
Usage Details
Suitable for general use, it can be used both inside and outside the building. But it should be a smooth, not rough area, because it will reduce the service life. There are wheels sizes from 1.5 – 3 inches, can support weight from 25 – 40 kilograms per wheel.
| Wheel Dia. (D) | 1.5 inch | 2 inch | 2.5 inch | 3 inch |
|---|---|---|---|---|
| Wheel Dia. (D) | 40 mm. | 50 mm. | 65 mm. | 75 mm. |
| Height (H) | 56 mm. | 65 mm. | 82 mm. | 94 mm. |
| Plate Size (AxB) | 60 x 48 mm. | 60 x 48 mm. | 60 x 48 mm. | 60 x 48 mm. |
| Hole Phase (XxY) | 46 x 34 mm. | 46 x 34 mm. | 46 x 34 mm. | 46 x 34 mm. |
| Hole Size (P) | 6.5 mm. | 6.5 mm. | 6.5 mm. | 6.5 mm. |
| Spin Distance (E) | 18 mm. | 18 mm. | 20 mm. | 28 mm. |
| Load Capacity / pcs. | 25 kilograms | 30 kilograms | 35 kilograms | 40 kilograms |
